Cursor Design Mode
A visual editing layer in Cursor's Agents Window: point at a live UI element in the integrated browser and the agent receives its code identity plus a screenshot, then edits the source — replacing "describe the element in text and hope it finds it." Toggle with
Cmd+Shift+D. Source: Cursor blog, https://cursor.com/blog/design-mode, 2026-04-02

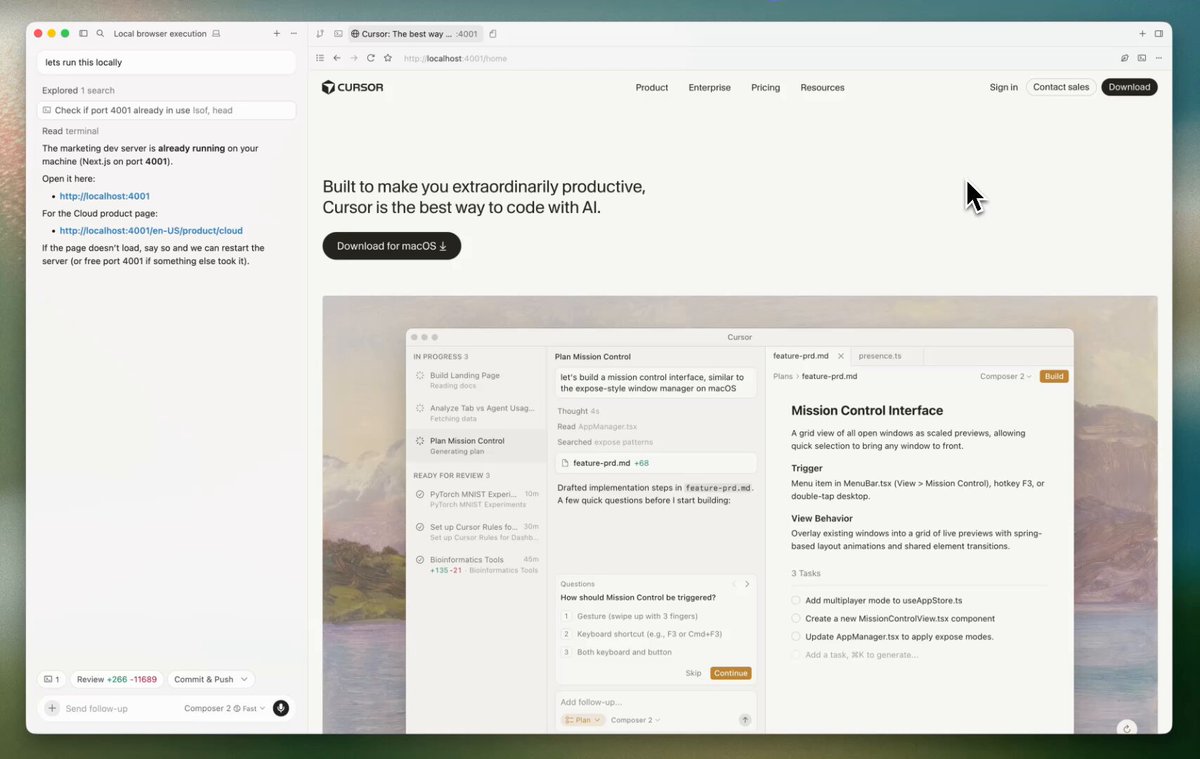

Design Mode collapses two loops into one. The visual loop: open the running app in Cursor's integrated browser, activate Design Mode, and point at elements. The code loop: on Apply, the agent locates the components in the repo and rewrites the source. It shipped with Cursor 3.0 on 2026-04-02, grown out of the browser Visual Editor introduced in Cursor 2.2 (Dec 2025). It requires a running local dev server — it cannot edit static files or production directly. Source: Cursor changelog 3.0, https://cursor.com/changelog/3-0, 2026-04-02
What the agent receives
Picking an element injects two complementary signals into context: Source: Cursor blog, https://cursor.com/blog/design-mode, 2026-04-02
- Element identity — xpath, the component, attributes, computed styles, and props from the React fiber tree.
- Screenshot for spatial context — layout, surrounding elements, and the exact page state.
That pairing is the whole point: the agent no longer searches for "the blue button near the header"; it gets the actual node plus the frozen frame it belongs to, so it can find the source and edit efficiently.
Deep review of the promo video confirms that workflow visually: the demo clicks a live browser target, opens element-context UI, inserts the selected target into the agent task, selects text on the rendered page, draws a freehand annotation over the screenshot, and marks page regions before the agent edits. The value is not only screenshot feedback; it is element identity + spatial markup + browser state packaged into the prompt. Source: X/@cursor_ai video, 2026-04-07; Source: local video frame review, 2026-07-03
Ways to convey intent
| Method | Best for | Shortcut |
|---|---|---|
| Click / select element | A specific node | Cmd+L add element to chat · Opt+click add to input |
| Select an area | Region-level layout/spacing | Shift+drag |
| Draw over the interface | Marking a crowded or animated section (annotation sits on a frozen frame) | — |
| Voice | Narrating the change hands-free | persistent mic (3.7) |
| Multi-element select | Consistency across two+ elements (passes each element's context + their visual relationship) | Shift+click / Shift+drag (3.7) |
Cursor 3.7 additions (2026-06-05)
Multi-element selection (Shift+click/drag across several elements at once), a persistent voice mic that stays active while the agent is mid-run so you can queue the next edit before the current one finishes, and Design Mode support on canvas surfaces (not just the integrated browser). Source: Cursor / Digital Applied, 2026-06-05
Where it fits Kevin's stack
Cursor is Kevin's primary IDE, so Design Mode is the native, in-editor version of the visual-feedback half of Complementary Browser Testing: an agent loop that finds and fixes visual/responsiveness bugs against real Chrome rendering. It is the point-and-edit front end; Browser Harness - Self-Healing Browser Automation and Playwright remain the way to codify the bugs it surfaces into regression gates. It runs inside the Cursor 2.0 and Composer / Cursor Harness agent loop and complements Frontend and Design Skills for building new UI. The limitation matters: it only acts over rendered UI in the integrated browser or canvas — backend/non-visual changes are still text prompts.
Timeline
- 2026-04-02 | Design Mode shipped with Cursor 3.0's Agents Window: annotate and target UI elements in the browser (
Cmd+Shift+D), built on the Cursor 2.2 Visual Editor. Source: Cursor changelog 3.0, 2026-04-02 - 2026-04-07 | @cursor_ai promo: "Use Design Mode in Cursor 3 to annotate and target UI elements in the browser." 1,673 likes, 596 bookmarks, demo video. Source: X/@cursor_ai, 2026-04-07
- 2026-06-05 | Cursor 3.7 added multi-element selection, persistent voice mic (works mid-agent-run), and canvas support. Source: Digital Applied, 2026-06-05
- 2026-06-12 | Page created from coding-agents bookmark absorption; verified against Cursor changelog + blog. Source: Cursor, 2026-06-12
- 2026-07-03 | Deep-reviewed the April promo video: element click, context popover, selected target insertion, text selection, freehand annotation, and marked page regions. Added local media artifact evidence to clear the bookmark's visual/video review. Source: raw/x-bookmarks/enriched/2041561791243940092.json; X media review, 2026-07-03
